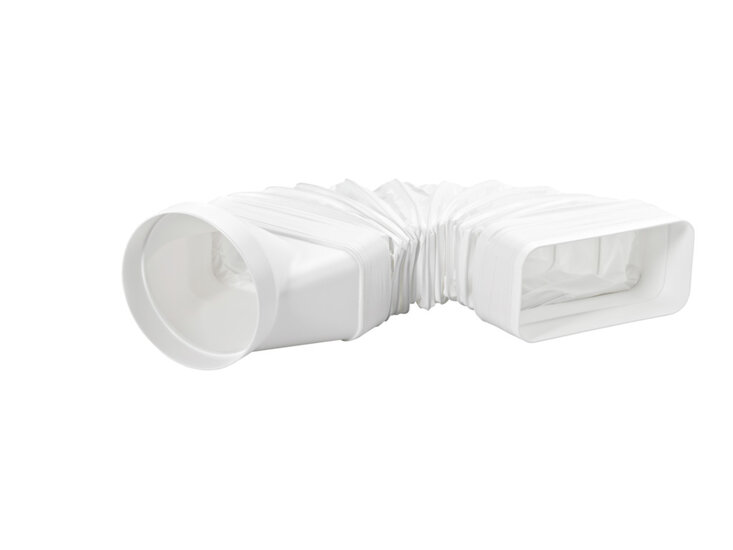

Airpart 4033024 MF-RBFLEX 2 system 125 tube bend, Connecting element, white

The Airpart Mf-rbflex 2 system 125 pipe bend is a functional connecting element finished in white. This component serves as a flexible adapter for creating a transition between round and angled connections within a piping system.

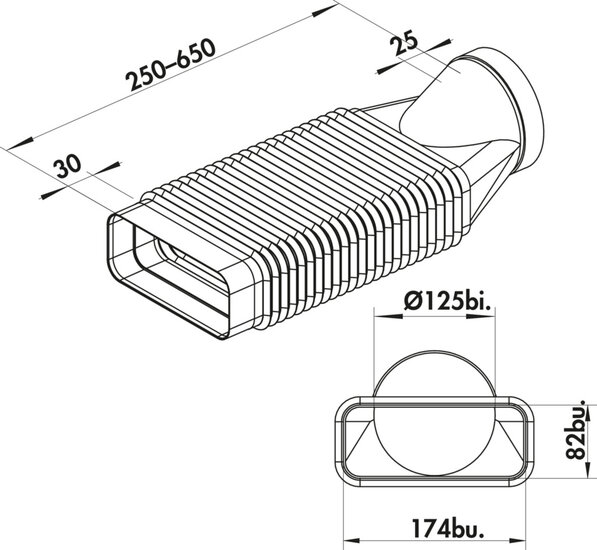

This connecting element is designed to allow for reversals and turns up to an angle of 90°. Due to the flexible properties of the material, the adapter has a variable length ranging from 250 mm to 650 mm, which provides the necessary clearance during installation.

Key Highlights

• Suitable for creating reversals and turns up to 90°.
• Functions as a flexible adapter for connecting round to angular connections.
• Features a variable length between 250 and 650 mm.
• Designed as an Mf-rbflex 2 system 125 pipe bend.

Technical Specifications

Application

This product is used as a connecting element in situations where a transition from a round to an angular channel is required and where flexibility is needed is to bridge curves or reversals up to 90 degrees.
