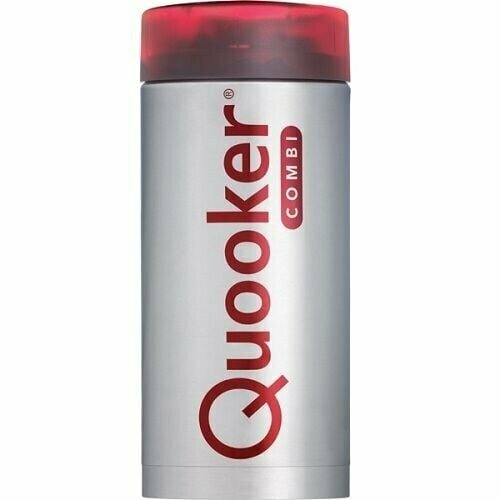

Quooker Combi PLUS Reservoir

Technical specifications and compatibility

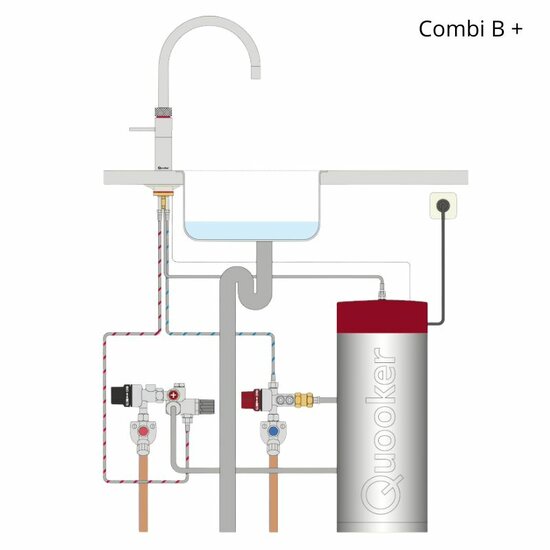

The Quooker Combi Plus 2.2 E tank instantly delivers 7 liters of boiling water (100°C) and provides unlimited hot water (60°C). Unlike the standard COMBI tank, the COMBI+ is connected to both the cold and hot water pipes. This system functions as a baseboard boiler for instant hot water, eliminating waiting times and water wastage, while the boiler takes over the hot water supply once it reaches the desired temperature.

System features and installation

This tank is equipped with high-quality vacuum insulation and the updated bellows system (COMBI PLUS B). This system internally absorbs the pressure increase during heating, making an external inlet combination unnecessary in specific configurations. The tank has a capacity of 2200 watts and a standby consumption of approximately 10 Watts.

Compatibility

Note: This tank is only compatible with modern Quooker taps equipped with electronic controls. Suitable for the following series:

• Quooker Fusion (Square and Round)
• Quooker Flex
• Quooker Nordic (Single taps and Twin taps)
• Quooker Front

Not suitable for older models such as the Basic, Modern, Design, or Classic taps with mechanical controls.

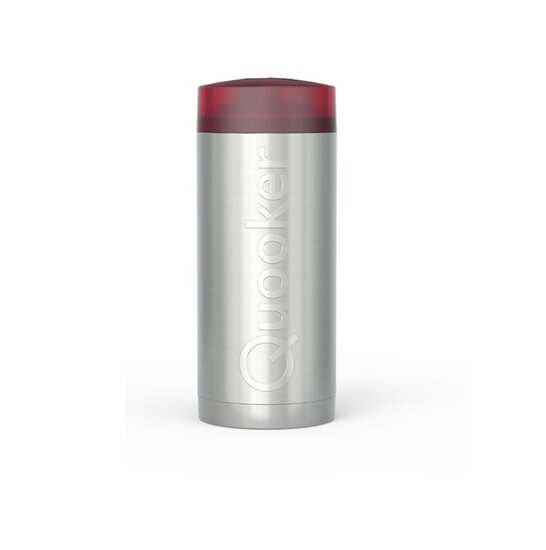

Technical specifications Quooker Combi 2.2 E

The Quooker Combi 2.2 E reservoir instantly supplies 7 liters of boiling water (100°C) and also serves as a hot water supply for the kitchen tap. The included mixing valve mixes cold water with boiling water from the reservoir, providing instant hot water without the need for a hot water pipe to the kitchen. This tank uses high vacuum insulation, resulting in a standby consumption of only 10 Watts.

Compatibility and replacement

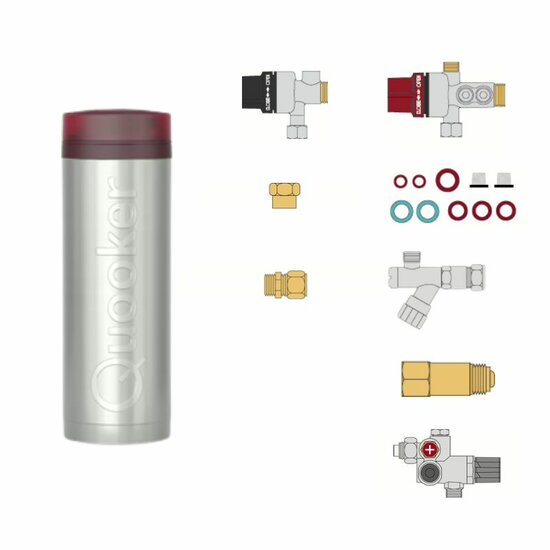

This tank is the designated replacement for existing Quooker tanks whose serial number starts with three letters followed by numbers (for example VCB, CCB or VCE). The system is Fusion-ready and technically optimized for use with Quooker Fusion, Flex, and Nordic taps produced from 2014 onwards. The construction features Bellows technology (COMB B), which improves internal pressure regulation and reduces limescale buildup at critical points. Installation features: Thanks to its compact design with a diameter of 200 mm, the cistern is suitable for installation in kitchen cabinets with drawers, provided there is sufficient space for the connection hoses. The cistern should always be mounted vertically. A complete connection set with inlet combination and mixing valve is included.
