- Salice hinge C2WFA99 upright 165° undamped B52
Description

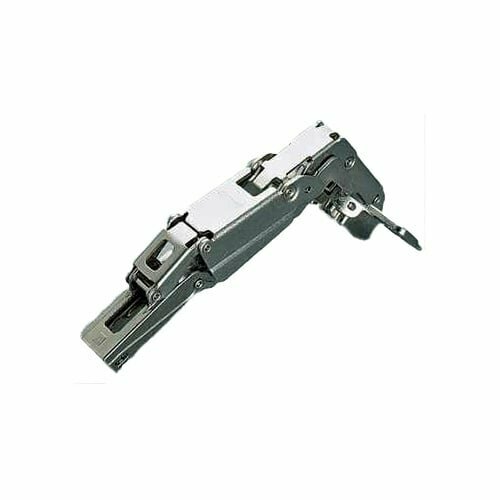

Salice hinge C2WFA99 upright 165° unmounted B52

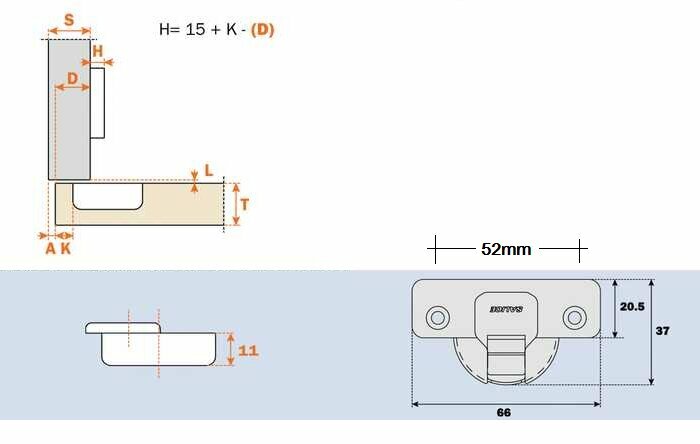

Salice hinge for upright doors. This kitchen hinge has an opening angle of 165° and a drilling dimension of 52 mm.
This Salice hinge is spring loaded which means that the door is pulled shut. If the door needs to be gently pulled shut the last bit, you will need a cushioned hinge.
A 165° kitchen hinge is often used for doors with inner drawer. Because this hinge can open further, it falls outside the body and the drawer does not hit the kitchen door.
Properties
|
Manufacturer |
Salice |
|
Type |
hinge |
|
Closing mechanism |
without soft close |
|
Door position |
upright |
|
Opening angle |
165° |
|
Drill size |
52mm |
|
Mounting |
screws |
|
Pot depth |
11mm |
|
Pot size |
35mm |
The mounting of the hinge is done with 3.5x16mm screws.
Mounting plate
Which mounting plate do you need?
Body thickness 16mm (3mm mounting plate)
Body thickness 19mm (0mm mounting plate)
Note: Hinges are always delivered without mounting plate, always order these separately.
